Sàn Nâng OA-600

Thông tin sản phẩm

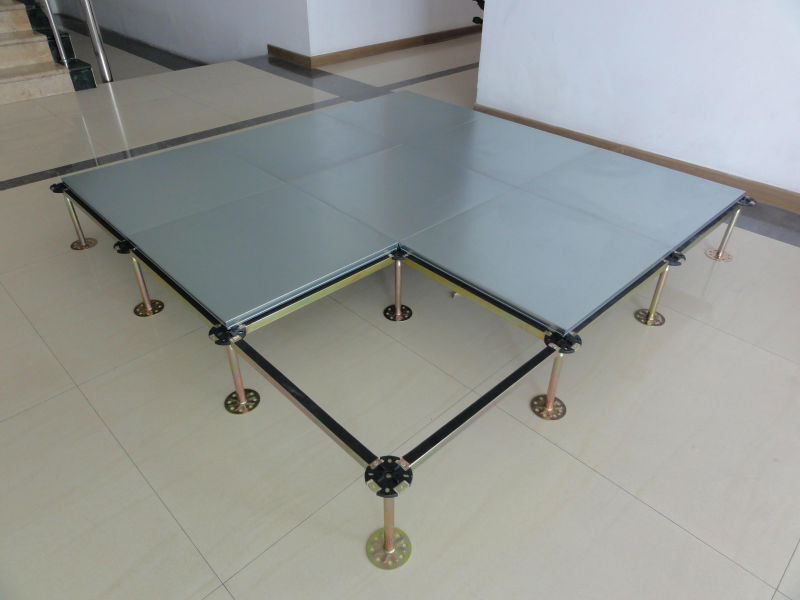

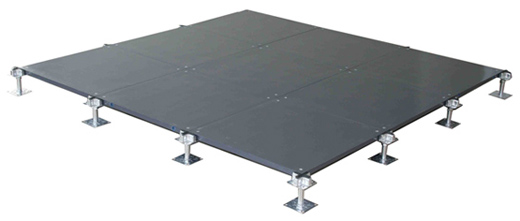

OA-600 Steel Raised Floor

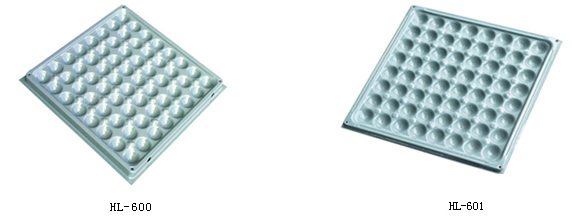

Product type:1.  HL-600 steel panel
                      2. HL-601 steel panel with reinforced panel edge

Size:600×600×35mm

Feature:
1. 60 perimeter welds as compared to 40 in earlier design, which greatly improves the panel edge loading capacity.
2. Every Huili panel is put into a flatting press and checked for flatness after welding. Huili is the only company to go this extra process in order to guarantee a super flat panel.
3. 32 reverse structural embossments. One at the center intersection of each structural cup. This eliminates the flat areas which are weak spots in early designs. Which helps in the panel ultimate loading capacity.
4. Huili panels come with 90 degree deep stretch steel beam corners, filled with high strength cement. And load applied on the panel will be transferred to the panel corners before travelling through the pedestals to the sub-floor.





Understructure:

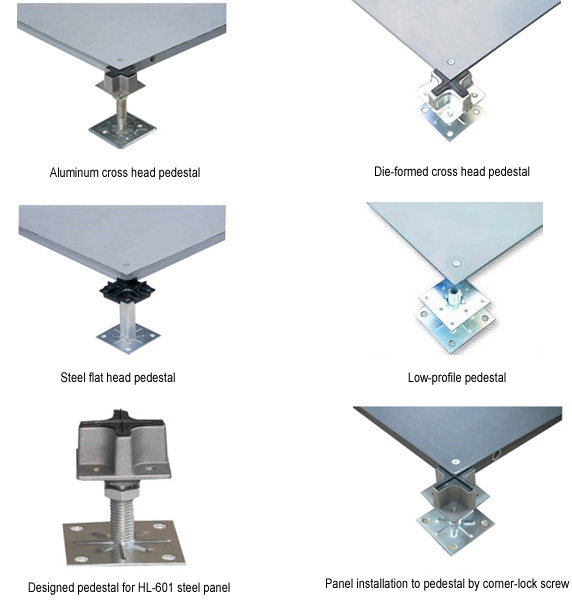

OA-600 steel raised floor is installed with aluminum cross head pedestal, steel flat head pedestal, die-formed cross head pedestal and low-profile pedestal.







Application:
OA-600 steel raised floor mainly applies in 5A grade intelligent building, meeting room, audio-visual teaching room where requires dust-proof and water-proof.

Remarks:
OA-600 steel panel can also be installed with trunking similar to OA-500 steel raised floor. Trunking sizes are 600x100mm, 600x160mm and etc.

Specifications:

Type

Size

Concentrated Load

Rolling
Load

Ultimated Load

Uniform Load

Fire Protection Performance

mm

N

KG

N

N

N/M2

FS700

600×600×35

≥2950

≥300

≥2255

≥8850

≥12500

National Standard Grade A-1 Incombustible
ASTM E84-01:
Flame Spread:0
Smoke Density:0

FS800

600×600×35

≥3550

≥363

≥2950

≥10650

≥16500

FS1000

600×600×35

≥4450

≥454

≥3560

≥13350

≥23000

FS1250

600×600×35

≥5560

≥567

≥4450

≥16680

≥33000

* 610×610 panel is available
* FS1500、FS2000 is available
